Friday, May 25, 2012

1995 Cadillac Deville: Location Diagram for blower motor resistor?

The blower motor not operating due to faulty blower motor resistor.The Blower fan only operated on high speed mode and not on Low and medium speeds.
In this case the blower motor resistor has to be replaced.

On 1995 year model caddy the blower motor resistor is hidden by the relays.

The help diagram will help.

The blower resistor is located along the passenger side of firewall in the engine compartment. It is hidden by the relays:

The diagram shows its location :---

blower motor

This details will help.
Thanks.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html

1996 Dodge Grand Caravan: Parking Brake Cable Broken?

How to replace Parking brake cable.

When the cable is broken,it has to be replaced.

First you will have to confirm which parking brake cable is broken and then it has to be replaced.

which parking brake cable - right rear, left rear, intermediate(connects rear cables to front cable), or the front parking brake cable?

I will provide details for all of that.

The details with diagrams are as follows:-----


Here are directions to replace the broken cable:
FRONT PARK BRAKE CABLE

REMOVE
Raise vehicle on jackstands or centered on a hoist.
Manually lockout the automatic self adjusting mechanism of the park brake pedal assembly.
Remove the intermediate and left rear park brake cable from the park brake cable equalizer .

brake cable assembly

Remove the front park cable housing retainer from body outrigger bracket .. Cable is removable by sliding a 14 mm box wrench over cable retainer and compressing the three retaining fingers. Alternate method is to use an aircraft type hose clamp and screwdriver.

See the help diagram shown below:------
parking brake cable


Once this is done Lower the vehicle.

For other parking brake cable removal,the details and diagrams are as follows:----

Remove the left front door sill molding.
Remove the left front kick panel for access to the park brake cable and park brake pedal assembly.
Lift floor mat for access to park brake cable and floor pan. Pull the seal and the park brake cable out of the floor pan of vehicle.

See the help diagram for this procedure:----


dodge parking brake cable



Pull park brake cable strand end forward and disconnect button from clevis. Tap cable housing end fitting out of pedal assembly bracket.
Remove cable retainer from the park brake pedal assembly bracket.
Pull park brake cable assembly out of vehicle through hole in floor pan.



The installing procedure is as follows:-----


INSTALL
Pass park brake cable assembly through hole in floor pan from the inside of the vehicle.
Pass cable strand button through the hole in the pedal assembly bracket.
Install cable retainer onto the park brake cable and then install cable retainer into pedal assembly bracket.
Install the end of the park brake cable into the retainer previously installed into the park brake pedal bracket.
Install cable strand button into the clevis on the park brake pedal mechanism.
Install the front park brake cable floor pan seal into hole in floor pan. Seal is to be installed so the flange on the seal is flush with the floor pan Fold carpeting back down on floor.
Raise vehicle.
Insert brake cable and housing into body outrigger bracket making certain that housing retainer fingers lock the housing firmly into place
Assemble the park brake cables onto the park brake cable equalizer
Lower vehicle and apply the park brake pedal 1 time, this will seat the park brake


This details will help.
Thanks.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html


2002 KIA Sedona: Car will not Start with OBD code P0340?

Yes OBD code P0340 can cause the no start condition for car.

Error code P0340 means problem with Camshaft position sensor A circuit bank 1.


While a bad cam sensor can be the cause of a no-start condition,
And the other possibility can be jumped timing belt which would also set the code for P0340.

The cam sensor is behind the upper timing cover:

See the diagram showing its location :----
cam sensor



You remove the upper timing belt cover to replace the cmp sensor. Takes about 30 minutes.

I would suggest removing the timing covers and verifying that the timing is correct and if it is, then replace the sensor. If not, then it needs timing belt job

See the timing marks diagram shown below:
timing marks alignment


To verify what is the correct timing,follow the procedure below:----
you have to remove the #1 spark plug, have someone turn the engine over by using a socket on the crankshaft pulley and turning clockwise while you have your finger over the #1 spark plug hole. When you feel air pushing your finger off the hole. It is at TDC(top dead center). Now look at the timing marks on the camshaft sprockets and on the crankshaft sprocket. They should line up as shown in the diagram I already provided.

The #1 spark plug is the one towards the firewall that is closest to the engine pulleys.

Cam sensor is only $45-55, depending upon store you go to. I would go ahead and replace it to start with, and if still no-start, then you thru the process to check the timing belt.

To replace camshaft position sensor its easy,you can do it.
you can do this yourself.
You will remove the 10mm bolts that hold the upper timing cover(there are 2 upper timing covers- remove the one closest to the front of the vehicle. when facing the belts it will be to your right). Once removed, remove the retaining bolts for the cam sensor, unplug it and remove. Install in reverse.

This details will help.
Thanks.For All types of Car models and brands help

Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html

Thursday, May 24, 2012

2000 Nissan Maxima: Will not Shift out of Park?

The Shifter will not shift out of park mode.
In some cases you will notice that pressing the brake pedal few times help to get it out of park mode.
But the problem starts again,once the vehicle gets into park mode.

There are two things that can cause such problem.

Either faulty brake light switch or the issue with shift interlock solenoid.


You have a faulty brake light switch. This switch also is used in the shift interlock system and when it starts failing, you will have problems getting it out of park. Pumping the brakes further verifies that this is the problem.

You will need to replace or have replaced the brake light switch. It is located at the top of the brake pedal at brake pedal bracket.

It costs around $25 for the switch and about $30 labor to install it.

To confirm the problem is brake light switch.Turn the ignition switch to ON and press the brake pedal.And see if brake lights are coming up or not.If no brake lights are illuminating,then problem is brake light switch.

But if brake light switch is checked ok and brake lights working fine then check the other possibility.


The center console will need to be removed and then the shift interlock solenoid tested for 12v when this occurs. If power present, then shift interlock solenoid is replaced. If no power, then the wiring harness between the brake switch and shift interlock solenoid will have to be physically traced and short in harness repaired.

For more help.see the diagram to go through:-----

shift solenoid and park position switch

This details will help.
Thanks.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html



2005 Cadillac SRX: How to Replace Power Mirror?

Power mirror not working or damaged.If its confirmed that mirror unit is faulty then it has to be replaced.First inspect the power mirror controlling fuse and the switch which operated the mirror.If both checked ok,then check the wires.If the voltage is checked ok at wires and connectors but mirror is inoperative,then power mirror assembly has to be replaced.

Below is the details procedure mentioned ,that will help to remove and install power mirror.


To replace the power mirror, you have to remove the door trim panel first:
If the window glass is up,then make it down.

See the diagram shown below:-----

window

Once this is done continue further to remove bezel
See the diagram shown below:----

remove bezel

Once the bezel is out,remove the door trim cover.See the diagrams shown below:-----

door trim panel

Now remove the Door trim,as shown below in the diagram:-----

door trim


Now once the Door trim is out,replacing power mirror can be performed.

See below the details and diagrams:-----

replace power mirror


The installation is in reverse or removal.
This details will help.
Thanks.

Hope all goes well.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html

1999 Lexus RX300: Engine idles low and stalls in morning?

The Engine idles very low while start up in the morning.Also a stalling is noticed.
But once the engine warms up is starts and runs fine.


In this types of problem there are several possible causes for low idle/stalling when engine is cold - low fuel pressure, vacuum leak, faulty coolant temperature sensor, faulty Throttle Position sensor, faulty mass air flow sensor, sticking throttle body throat plate.

To find out which of the above is the cause, you will need to leave the vehicle overnight with a shop so that they can test it with a diagnostic scanner when cranking the next morning and engine is cold. They wont be able to test it after having driven straight to them as the engine will be warmed up and nothing will show as wrong.

If you are going to do the testing, you will need to do it first thing before its being driven and will need a fuel pressure gage, a voltmeter and scan tool to test the above mentioned possible causes.

These details will help.
Thanks.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html

2006 Ford Focus: Steering Wheel shakes and vibrates?

While driving the vehicle at highway speed the Shaking and vibration is noticed on steering wheel for few seconds.

This is not constant vibration.It just shakes for few seconds then again stops and then again vibrates and this cycle continues.

In this types of cases first see do you notice any type of check engine light or any other warning lif\ght coming up on dash.If YES,then get the vehicle computer scanned to retrieve error codes stored in computer.That error code will point towards faulty part and you can continue your troubleshooting.

But if there is no warning light at all then its not error code related.

Then other thing to be inspected is noise.When the vehicle shakes and vibrates do you hear any king of clicking or rumbling or ticking noise from any where or its not making any noise.If its making any noise then reach that area from where noise is getting heard and from there you can start making your further troubleshooting.

But if no noise is heard and just the shake/vibrate issue then ,


usually a shaking/vibration felt in the steering wheel is tire/wheel related, but may be in the drivetrain, so we need to isolate the area of concern which is quite easy to do.

Take for a test drive and get up to highway speed where the shaking occurs. As soon as it starts shaking put the transmission in neutral. If the shaking immediately goes away, then it is drivetrain related. If shaking is still there, then it is in the tire/wheels area.

If tires/wheels, first the tires need to be carefully inspected for signs of belt separation - knots or goose eggs on tires, lumps on sidewall of tire, irregular tread wear, and also check for dents in rims. If all are ok, then the wheel hub bearings will need to checked for play and replaced as needed.

If shaking immediately stopped when put in neutral, then cv shafts need to checked for excess play, and right side cv axle needs to be checked for center bearing being bad. If cv shafts are good, then the transaxle itself will need to be inspected.

This details will help.
Thanks.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html

2006 Honda Pilot: Air comes out of intake throttle valve?

The problem in most cases is Flow of air gets thrown out every-time the engine is shut off.And this also makes noise and can be heard on driver side.


The Air is getting out of intake throttle valve.

This issue is related to faulty IAC also called as idle air control valve.Either is dirty or faulty.First remove the valve clean it and reinsert and check the problem.If its still there,then replace the IAC valve.

This is a faulty IACV(idle air control valve), and is a fairly common failure of this type.

See the Idle Valve location shown in the diagram:-------
idle air control valve



You can try removing it and cleaning it and see if it still makes the noise. If it does, then replace at that point.


There are 2 different 3.5L engines for the 2006 Pilot.


This one has an electronic throttle body in which the TP sensor and IAC valve are integrated into the throttle body.


Remove the throttle body and clean and reinstall. If noise continues, you have to replace the whole electronic throttle body assembly.


This details will help.
Thanks.





For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html

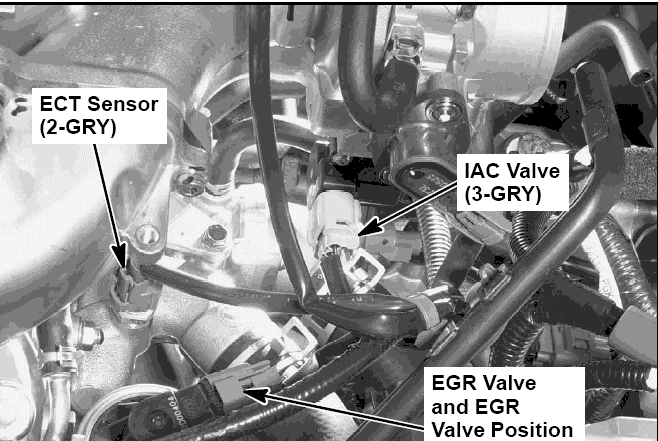

2006 Honda Pilot: IAC, ECT and EGR valve location?

The engine model is 3.5L.Honda pilot uses two types 3.5L engines.

There are 2 different 3.5L engines for the 2006 Pilot

one has an electronic throttle body in which the TP sensor and IAC valve are integrated into the throttle body.

On other model all are separately located.

See the diagram shown below:----
Sensor and Valve location diagram


This will help.
Thanks.


For All types of Car models and brands help
Go to Newly Launched

FREE Car repair guide?
http://technoanswers.blogspot.in/2012/03/car-repair-guide.html

&
Complete Car repair Help FREE?
http://repairhelpcenter.blogspot.in/2012/03/complete-car-repair-help.html


2007 Chevrolet Tahoe Z71: Radio Amplifier and Sound System Speakers Wiring System?

The complete Radio and Speaker wiring System.

The Vehicle uses Factory installed Two way Radio System.It uses Bose Amplifier System.

The Fuse that controls the Bose Amplifier is located under hood.

The Bose Amplifier itself is located under the console.
For Bose Amplifier Location in the Chevy Tahoe model.See the diagram Shown below:-----


that it is under the console(#6 in diagram)

radio Amplifier

For Ampere Wiring Diagram See the Wiring Diagram Shown below:-----

it has 8 speakers,plus the sub. 4 doors, front and rear pillars. There is a  service tag info for Speaker details which you can see from the glove box that  will help you narrow it down. -

radio amplifier wiring



To get to the Amplifier under the console you need to remove the seats.The Bolts that hold the seat is E-20 size.


This vehicle actually has additional speakers than those displayed in the pinout, tweeters and a sub-woofer.

See the Rest of Speakers wiring Diagram shown below:-----

subwoofer speaker wiring


radio chevy wiring


speakers wiring diagram
